MyChron 5 2T Data System

  • $59900


Whats in the Box

    • Mychron 5 with GPS working at 10 Hz

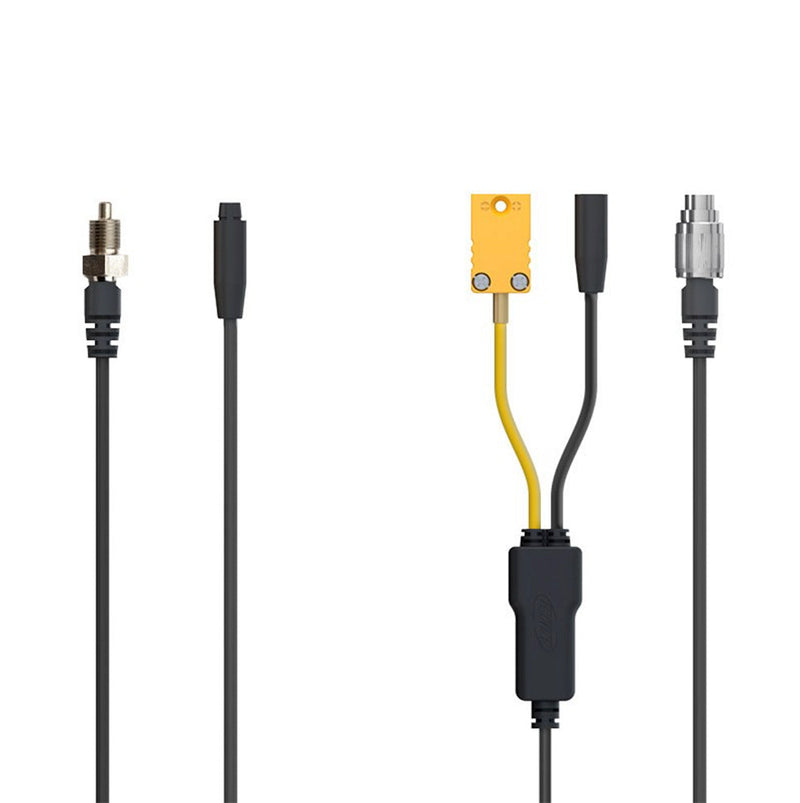

    • A choice of Water, Under Plug CHT or EGT temp sensor
    • RPM Lead
    • Battery
    • Battery charger

Mychron 5 Features

Our technicians have worked for many years for making GPS technology useful and reliable in the motorsport environment. We have reached such a good level that we decided to integrate GPS module inside MyChron 5.

The system takes advantage from an internal wide track data base, in order to automatically understand in which track you are, where and how many are the magnetic strips: without any further sensor or configuration you will automatically get lap times, predictive lap times and split times.
GPS data, acquired ten times per second, are of course recorded with other signals in the internal data logger, in order to offer the possibility of a deep analysis of your performance.





    Integrated GPS

    Our technicians have worked for many years for making GPS technology useful and reliable in the motorsport environment. We have reached such a good level that we decided to integrate GPS module inside MyChron 5.

    The system takes advantage from an internal wide track dbase, in order to automatically understand in which track you are, where and how many are the magnetic strips: without any further sensor or configuration you will automatically get lap times, predictive lap times and split times.
    GPS data, acquired ten times per second, are of course recorded with other signals in the internal data logger, in order to offer the possibility of a deep analysis of your performance.

    Robust housing with wider display

    The new Nylon chassis on the MyChron 5 comes with metallic push buttons and guarantees even more resistance to shocks and water. The anti-scratch non-reflecting polycarbonate screen and the wider display ensure great readability.



    Completely Configurable pages

    Define as many pages as you wish, showing graphic bars or just digits, via software or directly on your system.





    Calculated Gear Number

    In case your kart is a shift kart, you can decide to show the gear number, automatically calculated in a few hundredths of meters while you are driving.





    Ambient Light Sensor

    MyChron5 provides optimum viewing in diverse lighting conditions: the display brightness is automatically adjusted according to the environment light





    Wide Display – Multicolour Back light

    More data require more space for looking at them. MyChron 5 features a wide high resolution display with fully configurable back light.

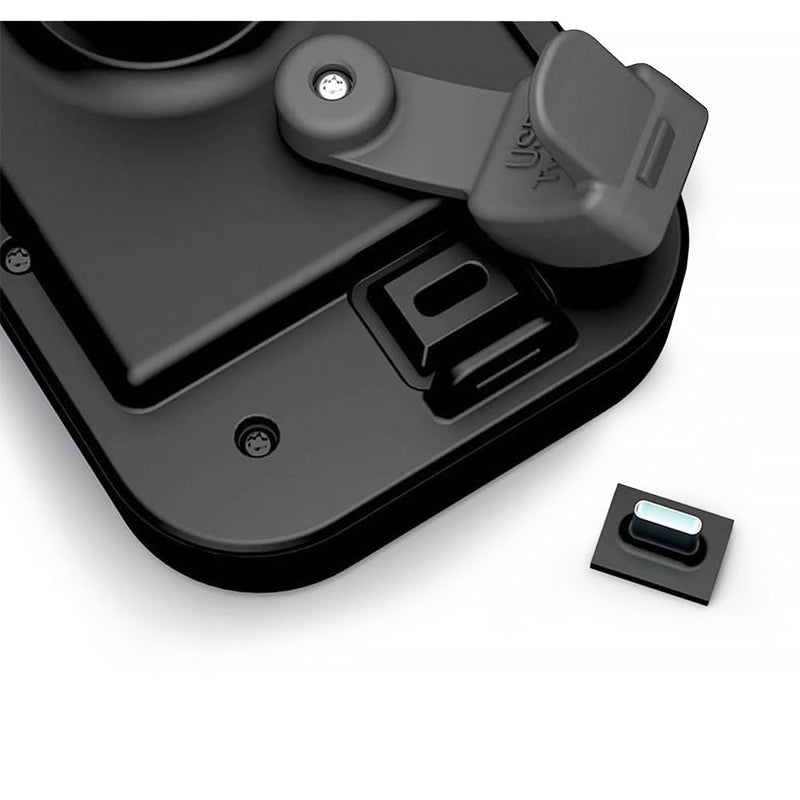

    Rechargable Lithium Battery

    No problems with traditional batteries anymore: MyChron5 is powered by a dedicated rechargeable and removable lithium battery. It is long-lasting (about 10 hours duration) and easy to recharge, placed on its magnetic basement connected to the power adapter. The usual external power connection is also available.





    Shift lights and Alarm LED’s

    Five RGB shift lights can be configured for each gear, choosing LED colour and RPM threshold values which will turn them on/off. They also allow RPM monitoring in a glance. Even alarms are managed in a very flexible way: you choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch-off.





    WIFI Connection

    Download your data to your PC, look at the On Line measures, upgrade your firmware, transmit parameters using the well known Data Key or through fast WiFi connection.
