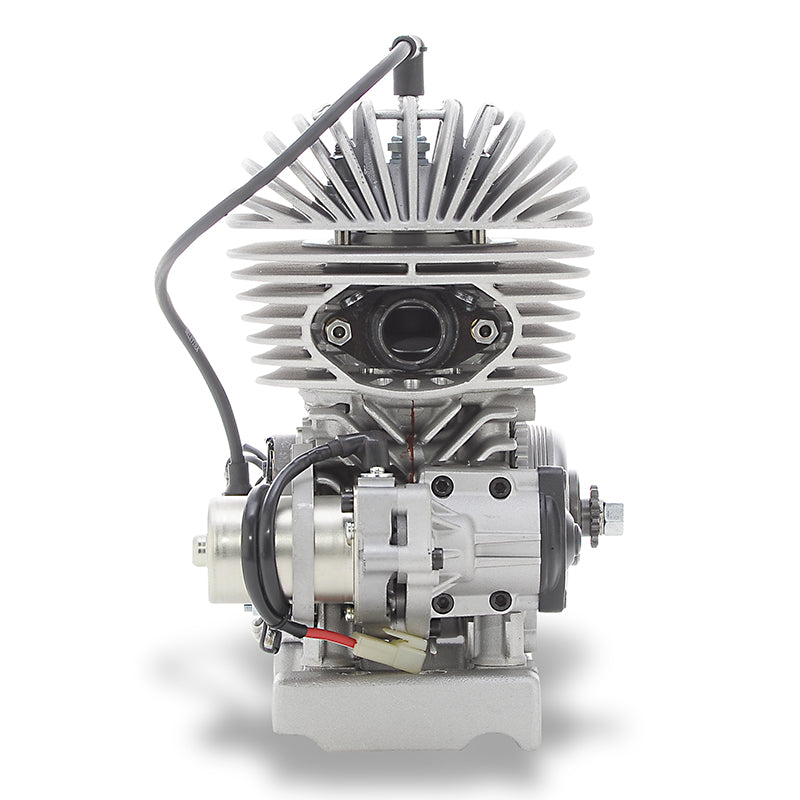

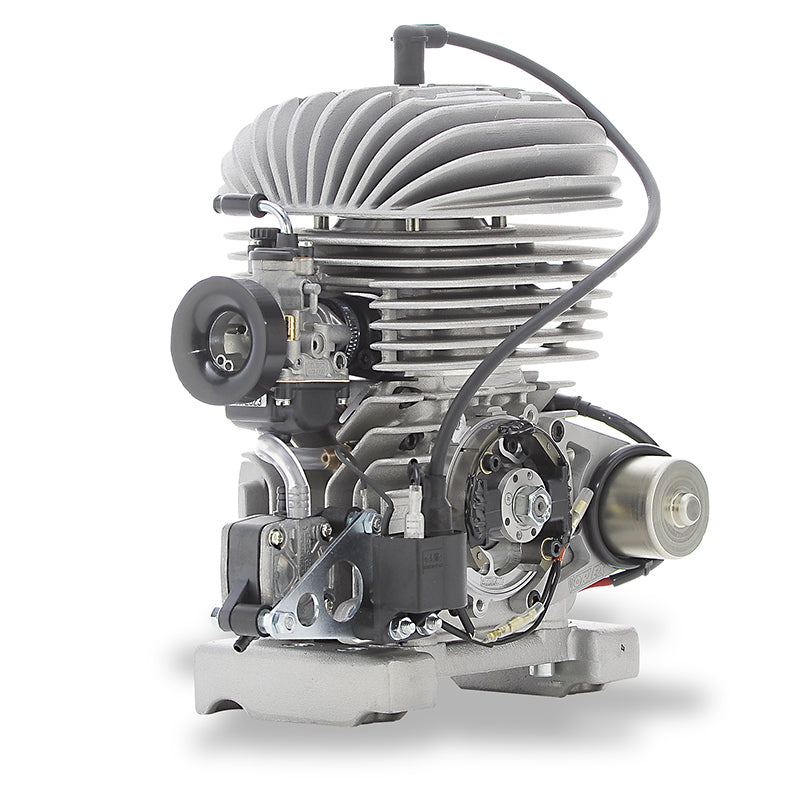

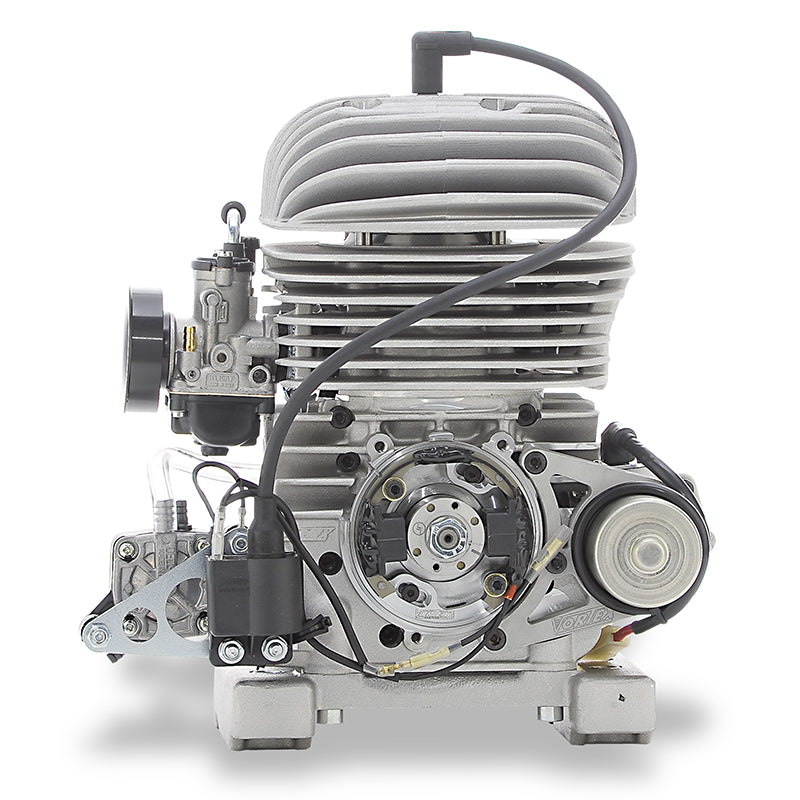

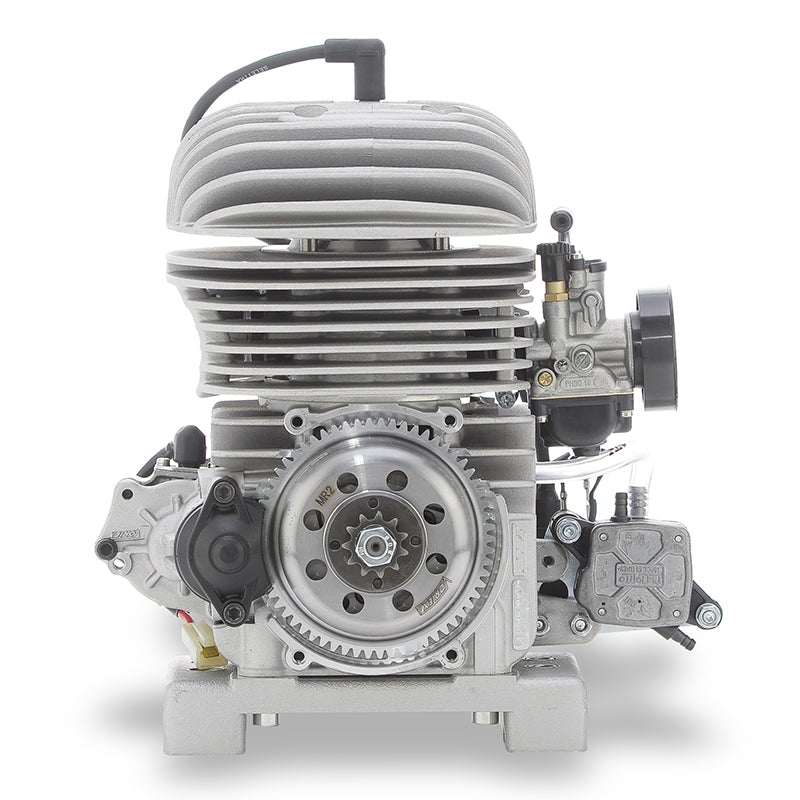

The engine has the following features: Single-cylinder 2 stroke engine, displacement 60cc, piston port. Air-cooled, equipped with centrifugal dry-clutch and integrated electrical starter.
The engine comes in a complete kit with Dell'Orto PHBG Ø 18mm carburettor, Dell'Orto fuel pump, Vortex intake silencer and exhaust with integrated exhaust silencer and starter.
Mini Rok engine is aimed at the younger generation and for more than a decade has spread worldwide, therefore more and more federations have chosen it as national entry level category.
Technical Specifications
| Model |
Vortex ROK Mini 60cc |
|---|---|
| Description |
Single cylinder – 2 stroke 60cc |
| Class |
Micro, Mini |
| Cooling System |
Air-cooled system |
| Exhaust |
Mini Rok exhaust with integrated exhaust silencer |
| Bore and Stroke |
42x43mm |
| Max Power |
10 HP a 11.000 Rpm |
| Max Torque |
6.5 Nm a 9.000 Rpm |
| Max RPM |
15.500 Rpm |
| Ignition |
Selettra analogic ignition |
| Carburetor |
Dell’Orto PHBG Ø 18mm |
| Silencer |
Vortex intake silencer |
| Fuel Pump |
Dell’Orto |
