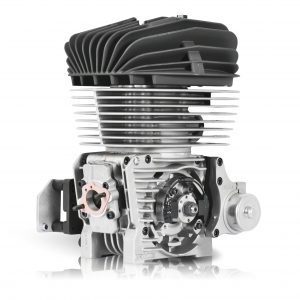

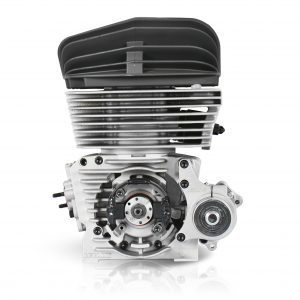

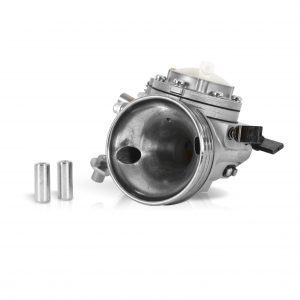

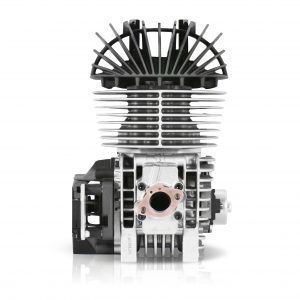

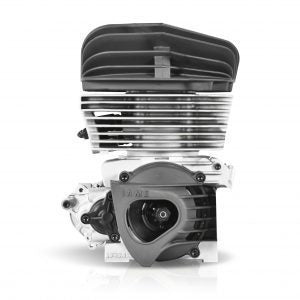

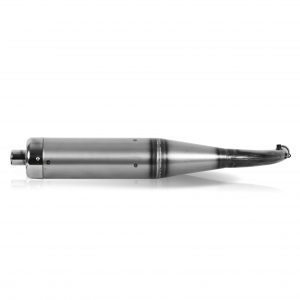

The KA100 is a user-friendly, 22HP, complete engine package with a simple ignition system, fixed pipe, machined Tillotson carb, and an onboard push button starter. The IAME KA100 includes many of the parts utilized in the popular IAME X30 engine, and also uses the IAME Mini Swift coil and ignition. IAME USA has added this offering for North America to provide a more economical solution to high performance two cycle racing.
Technical Specifications
| model |
Reedjet KA100 – Clubman |
|---|---|
| description |
Single cylinder – 2 stroke |
| class |
KA – Clubman |
| bore |
Ø 48,20mm |
| max bore |
Ø 48,53mm |
| stroke |
54,00mm |
| displacement |
98,53cc |
| ports |
2 |
| inlet system |
Reed Valve |
| lubrication |
Oil mixture |
| ignition system |
Analogic with adjustable timing |
| transmission |
Centrifugal Dry Clutch |
| cooling system |
Air |
| balancer shaft |
– |
| starter |
Electric |
| carb. model |
Tillotson HW 33A |
| max power |
22 Hp |
